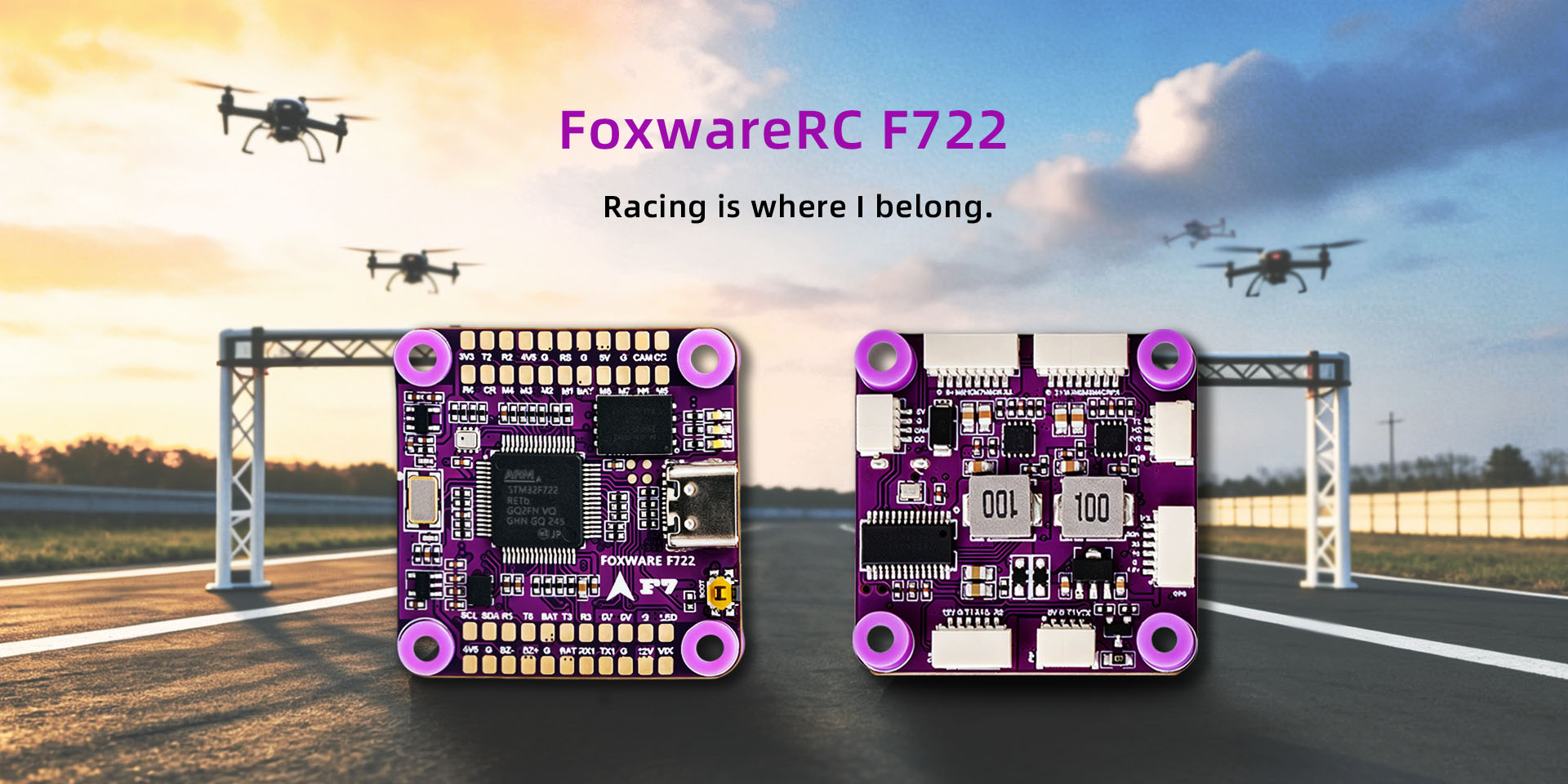

Model Type: F722 Flight Controller

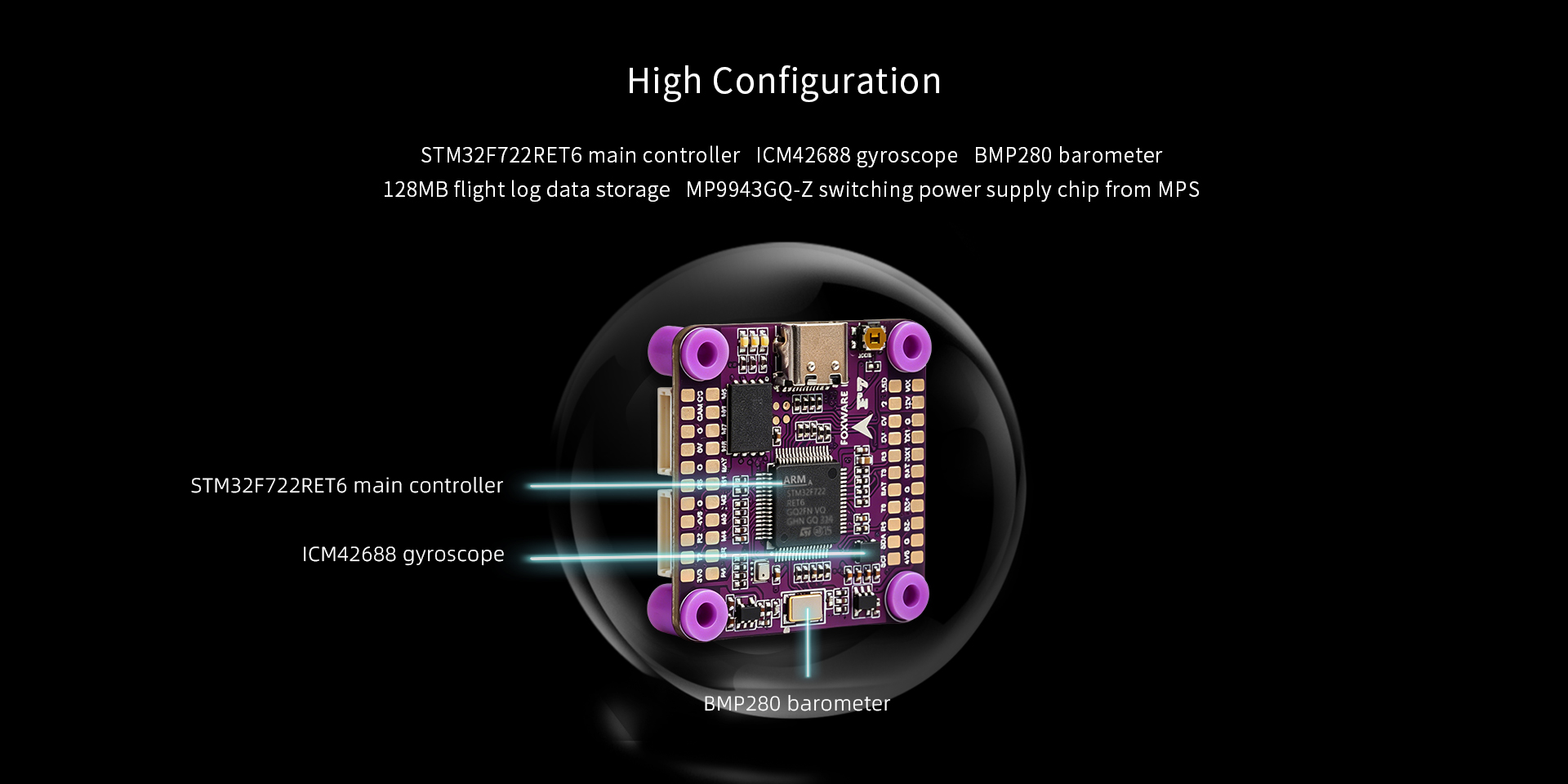

Processor: STM32F722RET6

Gyro: ICM42688

OSD: AT7456E

Barometer: BMP280

Blackbox Storage:128MB for flight log data

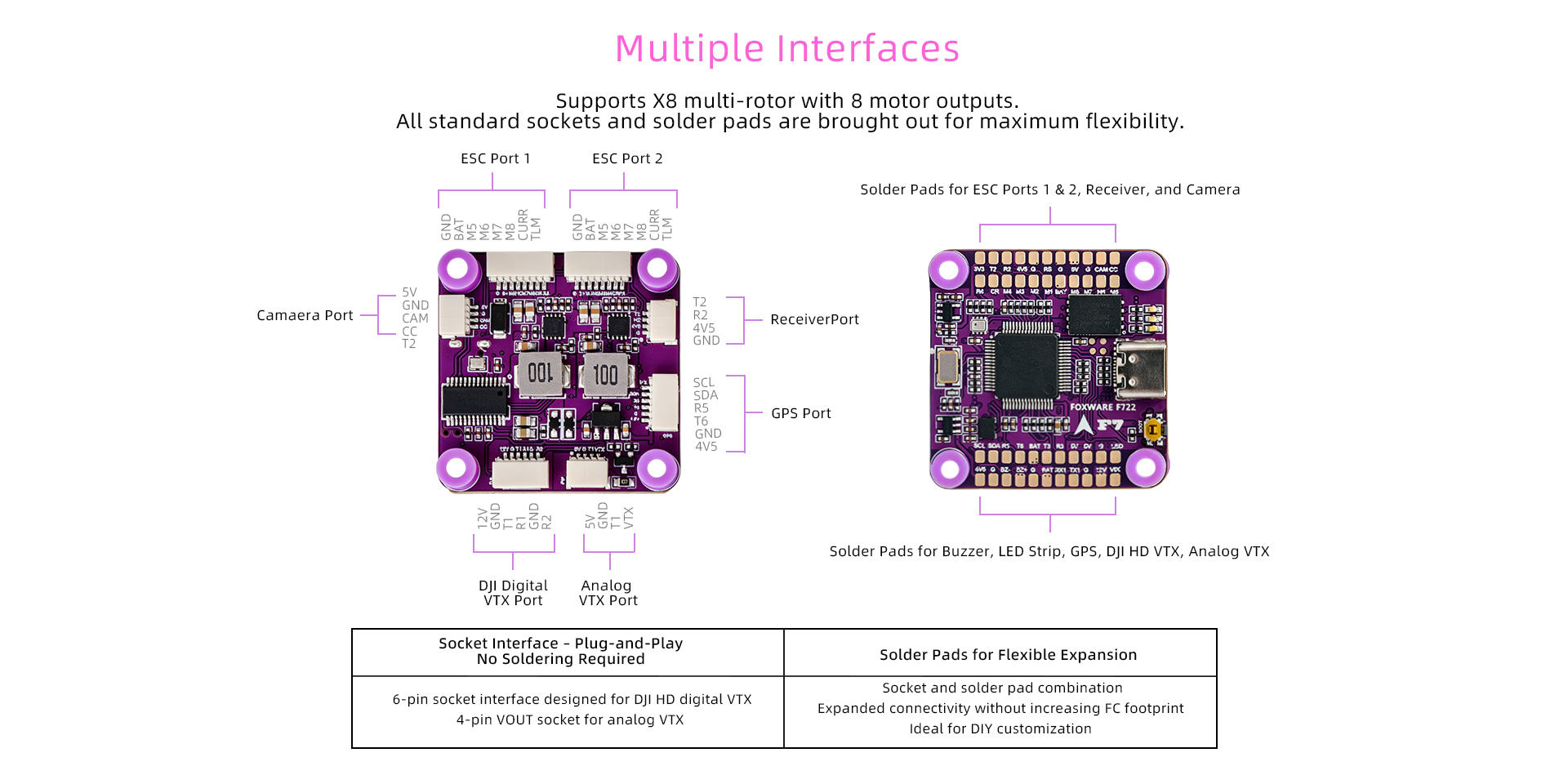

Motor Channel: M1~M8

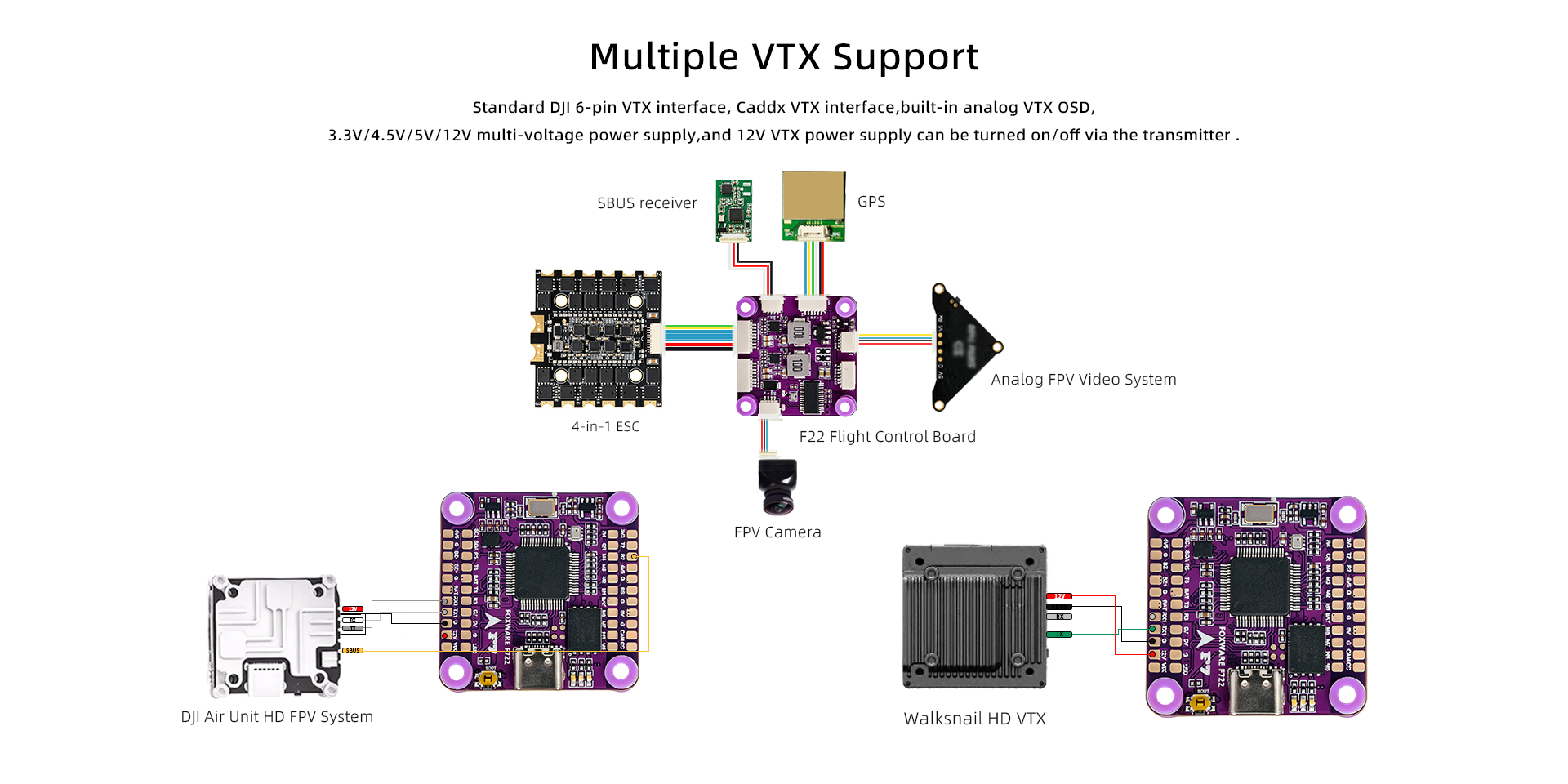

Direct DJI Air Unit Plug-in: Support

Direct Analog VTX Plug-in: Support

Betaflight Camera Control: Support

Battery Scale: 110

UART Ports: 5

ESC Telemetry Input: Support

I2C: Support

LED Strip: Support

Buzzer: Support

RSSI Output: Support

Firmware Type: Betaflight

Firmware: FOXWARERCF722

USB Port: 1(Type-C)

Transmitter Signal: SBUS/CRSF

Video Transmission: Support

ESC Protocols: PWM/Bi-directional DShot/OneShot

Input Voltage: 3~6S

BEC：3.3V/300mA；4.5V/500mA；5V/3A；12V/3A

12V BEC Switch: Support(USER1)

Supported Platforms: Fixed-wing aircraft, helicopter,flying wings, 2~8 rotor multi-rotors (including X8 configuration), and various user-assembled multi-rotor aircraft.

Weight: 10.5g

External Dimension: 33mm*33mm

Installation hole position: M3,30.5mm*30.5mm
