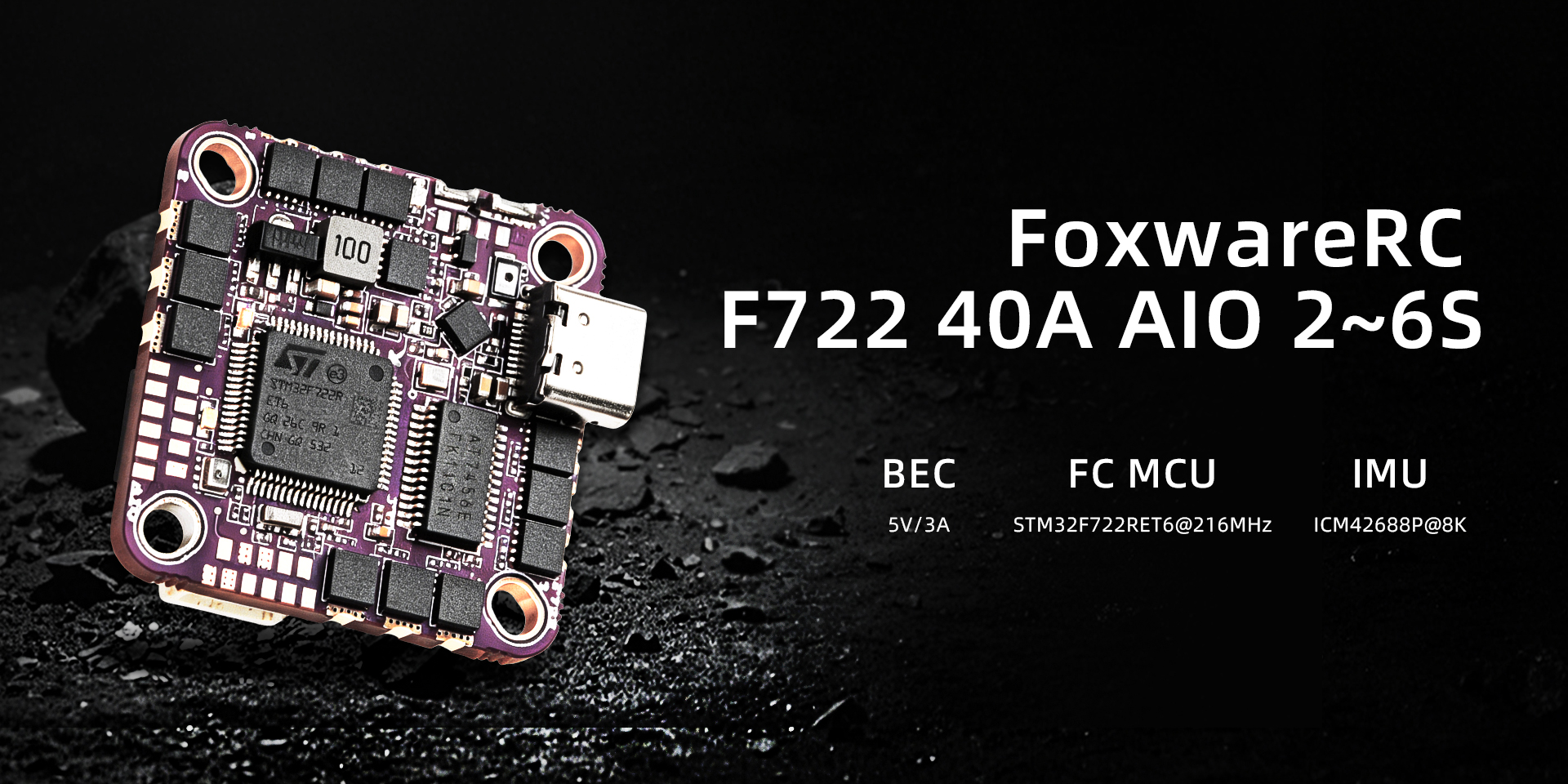

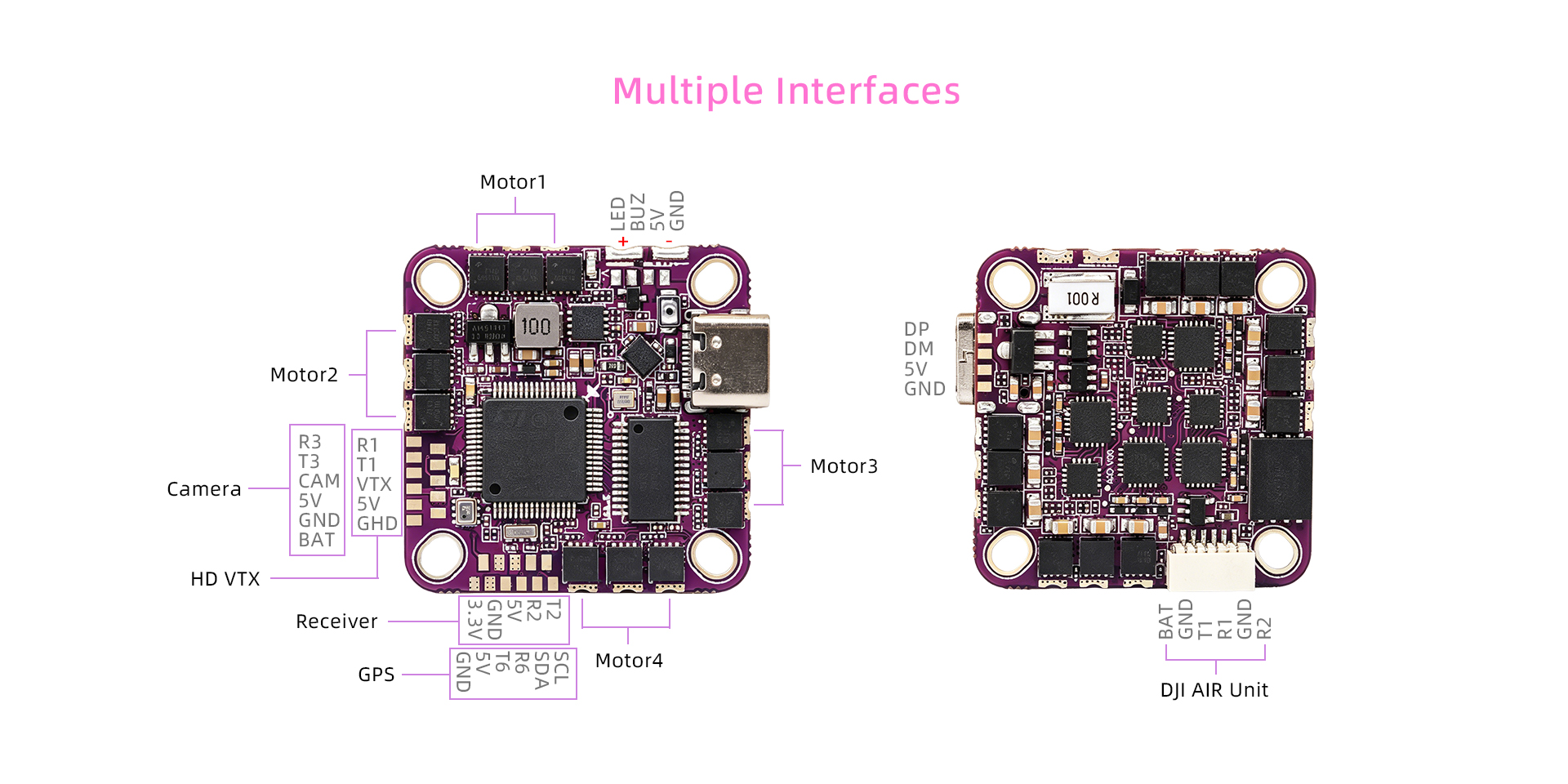

Model Type: FoxwareRC F722 40A AIO

Flight Controller

Processor: STM32F722RET6

Gyro: ICM42688

OSD: AT7456E

Barometer: BMP280

BEC: 5V/3A

LED: External programmable LED

Sensor: Built-in current sensor

Receiver: CRSF/Frsky/Futaba/Flysky/TBS Crossfire/DSMX:DXM2 receiver

ESC

Continuous Maximum Current: 40A*4

Instantaneous Maximum Current: 45A*4

Input Voltage: 2~6S Lipo

ESC Protocol: 150/300/600 & Multishot/OneShot/Proshot/PwM etc.

Electric Rotary Adjustment: Support

On Board Ammeter: Support

Firmware: BLHELI_S

Weight:9g

External Dimension: 33mm*33mm

Installation hole position: M3,25.5mm-26.5mm
